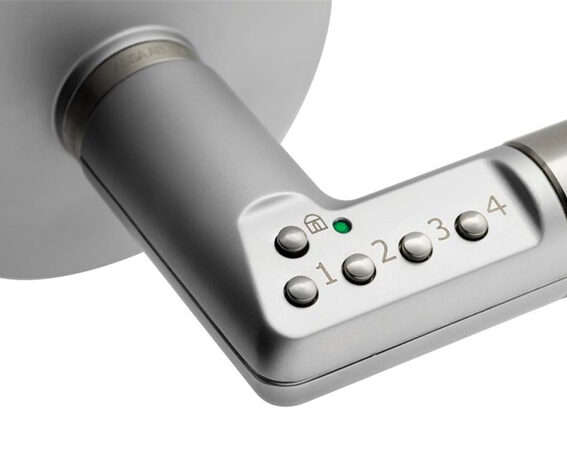

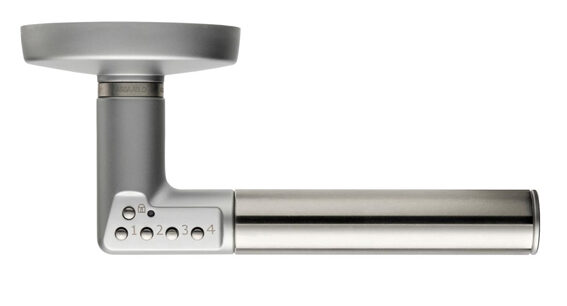

Lockwood’s innovative door handle with integrated electronic security, offers simple and effective keyless locking, without compromising aesthetics.

Designed to enable conveniently controlled access to a door with easy installation. Code Handle is ideal for offices, store rooms or a study at home.

The Lockwood Code Handle provides flexible locking options for doors that need to be always locked or alternatively can be left open to provide free access during the day and locked at night. The Code Handle is an electronic product that is not weather rated, so use should be limited to appropriate environments.

FEATURES

• Lever handle with integrated code lock
• Program up to 9 User codes, 4-6 digits in length
• Keypad access control lever
• Supplied with Lockwood 530 60mm latch
• Easy to install
• Ideal for retrofit installations
• Programmable administration code for setting lock operation and user programing
• Manual or automatic locking
• Passage mode
• Code lockout after 5 incorrect attempts
• Durable stainless steel handles

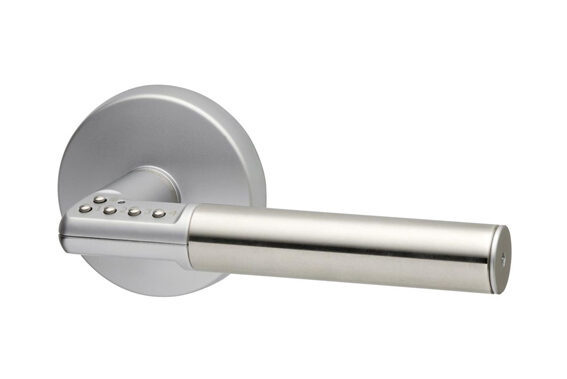

• Left and right handed versions

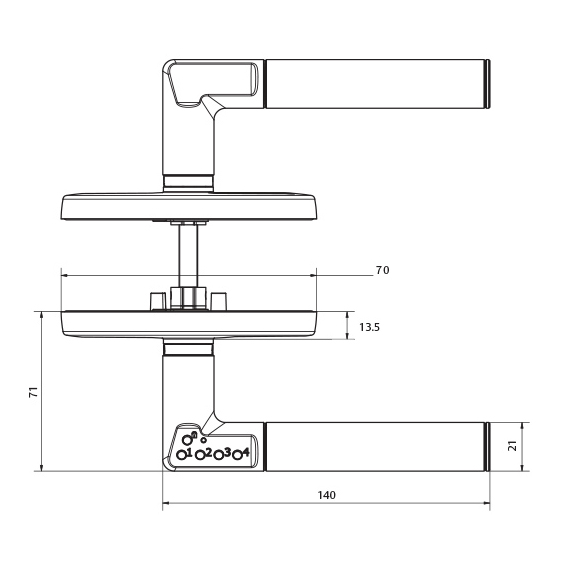

SPECIFICATIONS

• Installation
  25mm latch hole and 54mm lock hole
• Backset
  60mm (70mm latches available)
• Latch
  Brass 13mm projection deadlatch
• Door Thickness
  32 to 55mm
• Finish
  Satin Pearl with Stainless Steel
